Lamaxa Louvre Roofs

Lamaxa L60 Louvre Roof

Lamaxa Louvred Roof Plus Design and German Design AwardsThe Warema Lamaxa Louvre Roof was the recipient of both the 2018/19 Plus X Award and the 2019 German Design Award. Deciding attributes were the quality of the materials, smooth operation and minimalist design. Lamaxa is an uncompromising combination of form and function for the ultimate outdoor shading solution.

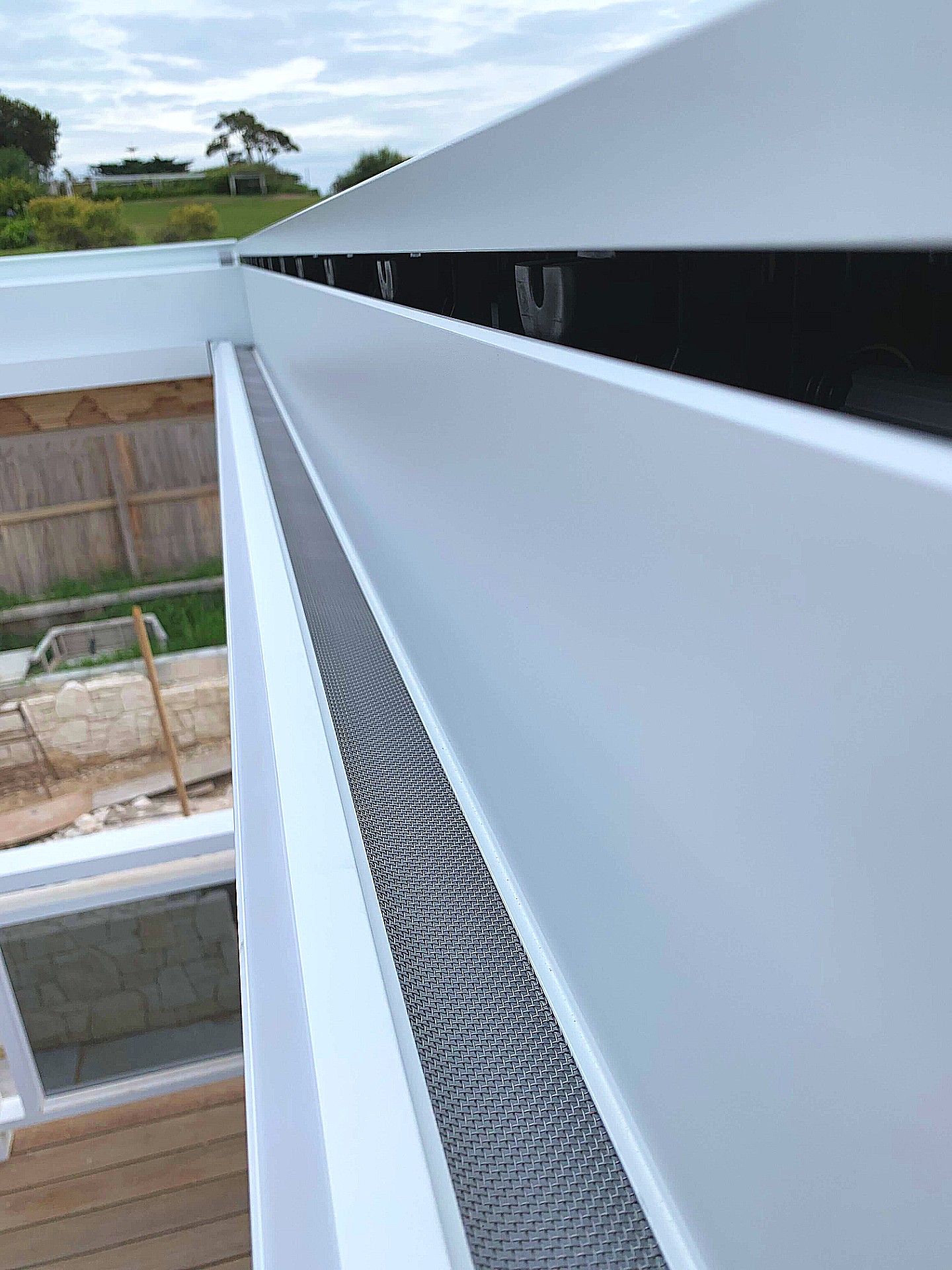

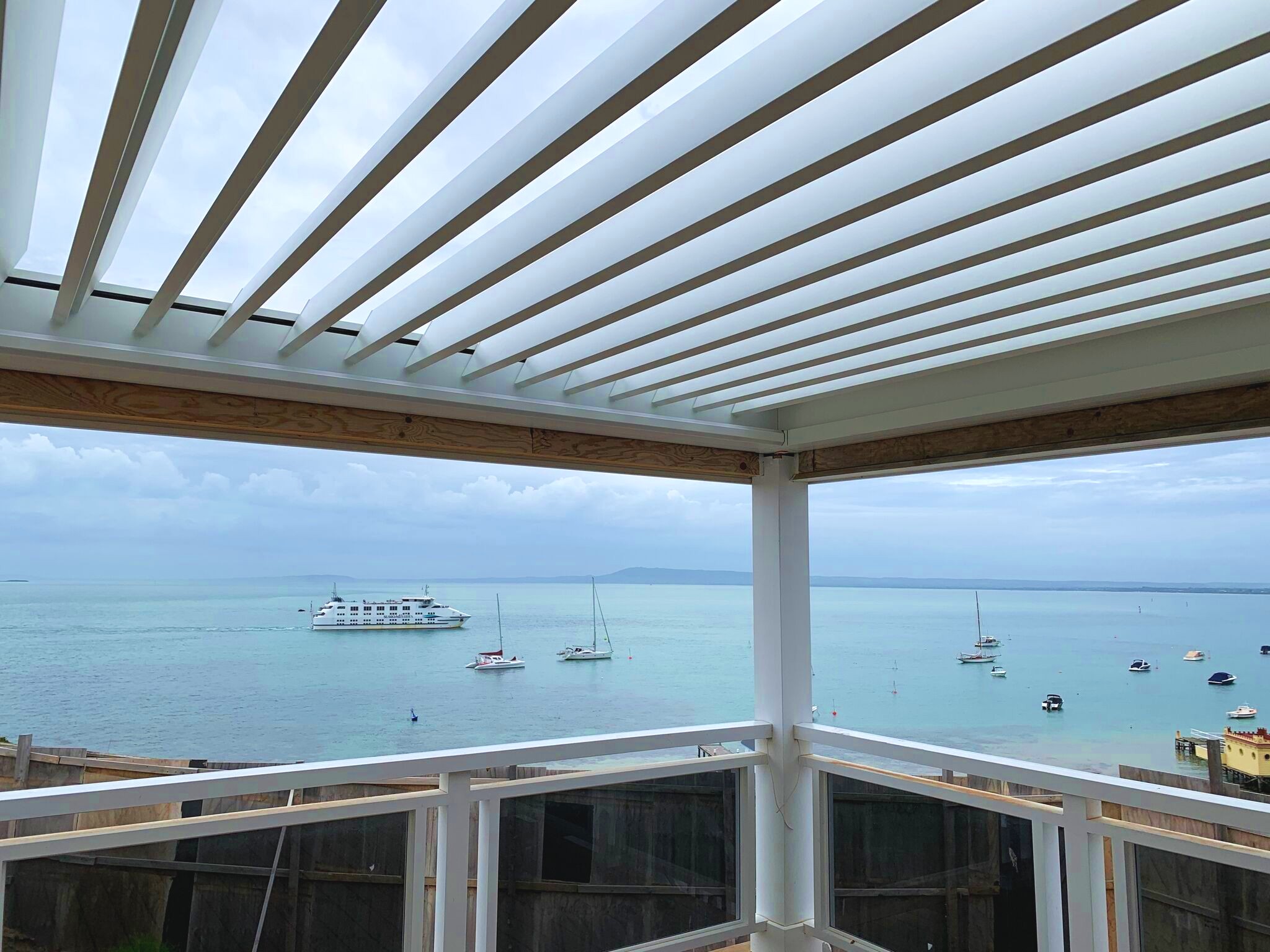

Lamaxa Louvre Roofs have controllable tilting louvres that allow for the precise attenuation of sunlight and shading of outdoor spaces. When closed, the louvres overlap and seal against each other to create a waterproof canopy. Special louvre ends combine with integrated guttering and drainage via the supporting legs, to reticulate rainwater safely away from the structure.

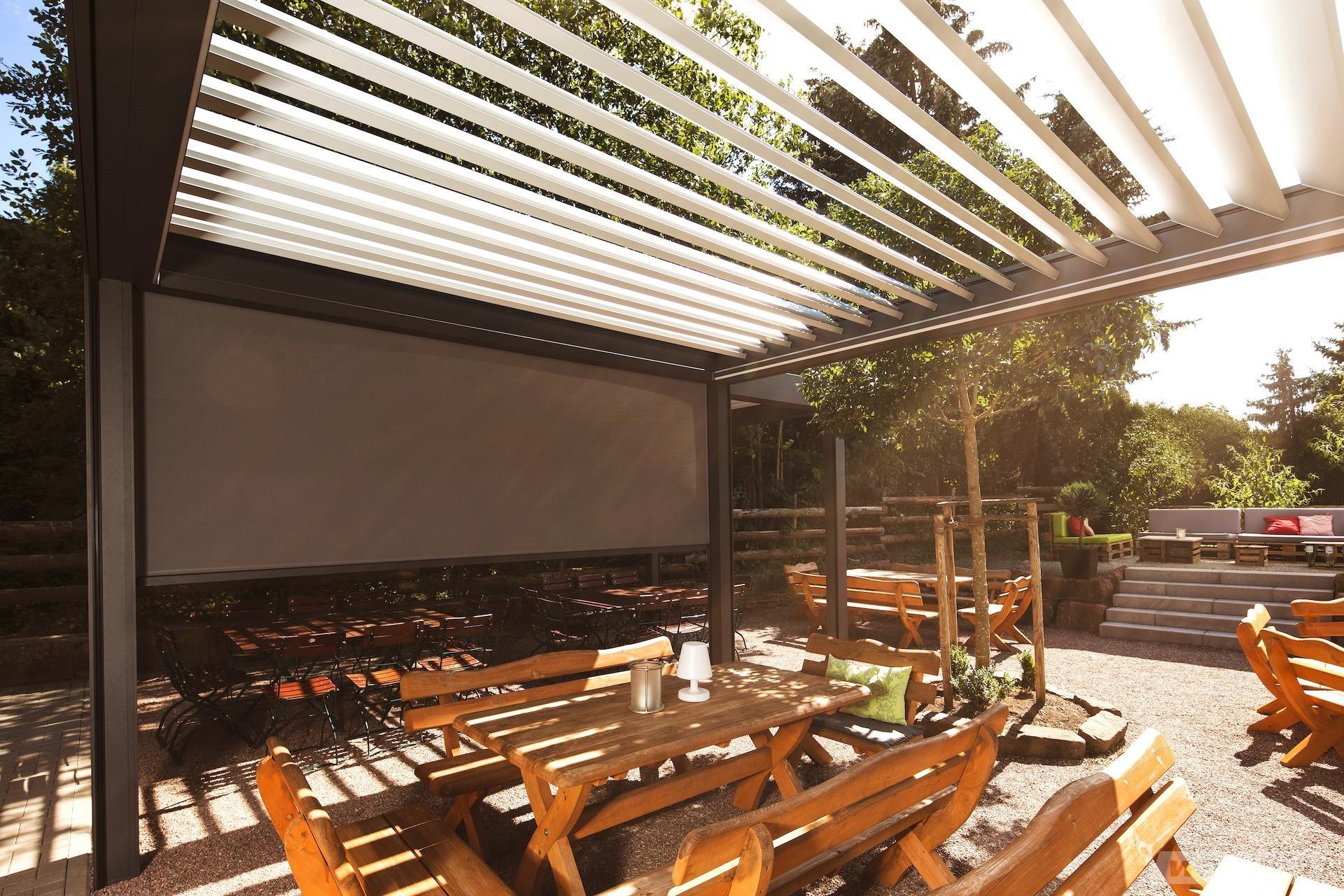

Optionally, Warema Zip Awnings can be integrated into the top rails to add operable vertical shading and wind protection to any of the sides.
The Lamaxa L60 is available up to 6m long by up to 4.5m wide (242/mtr max) and is available in a large range of DB Classic, RAL and other colours.

Price Guide

The starting price for a complete supply and installation of Lamaxa L60 louvre roofs is $65,000, reflecting our commitment to premium quality and meticulous precision in engineering.

Key Features & Benefits
  • Louvres tilt to allow the control of direct sunlight and shade
  • Interlocking louvres create a waterproof roof when closed
  • Integrated drainage system incorporating enclosed gutters and downpipes
  • Able to span up to 6m by 4.5m
  • Integrated with Warema's WMS Control systems
  • Wind resistance up to 1.1 kN/m²
  • Can bear load up to 230 kg/m²
Applications
  • Outdoor patio areas
  • Commercial eating areas or public spaces
  • Large glazed skylights
  • Landscape structures
  • Streetscape structures
